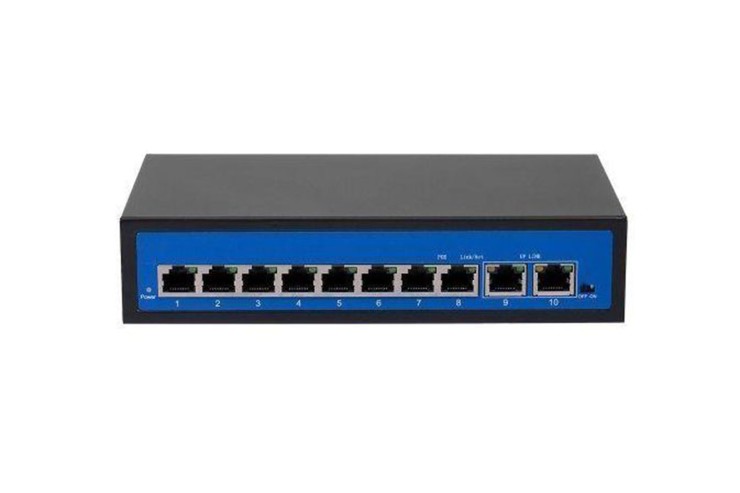

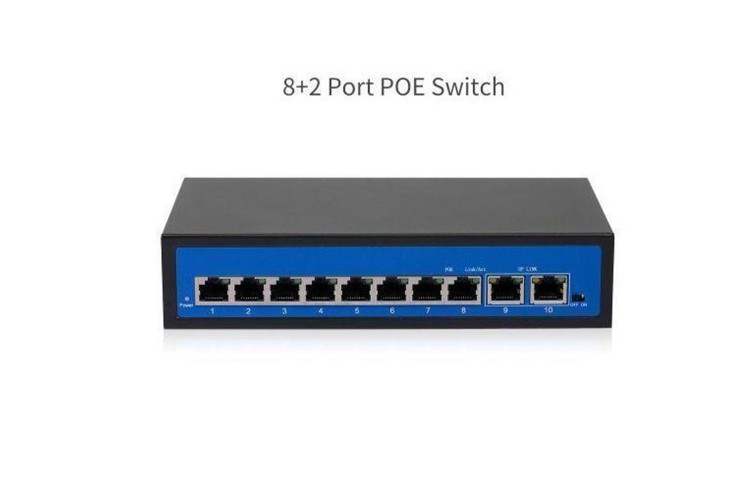

8+2 POE Switch 8 Ethernet Port

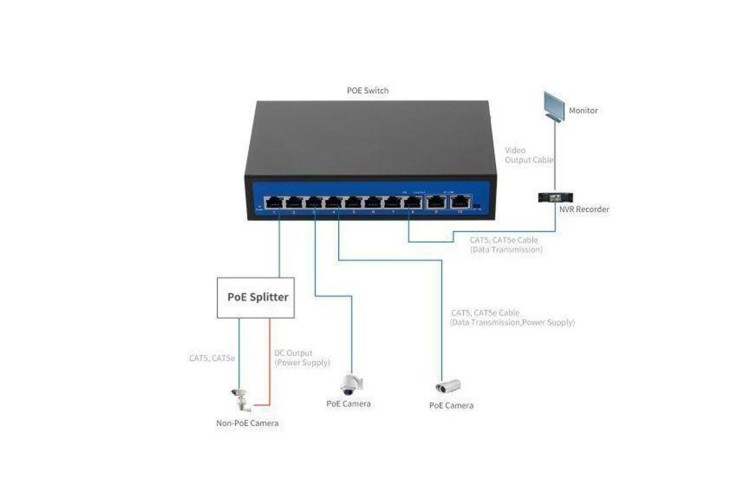

This 8+2 PoE Switch features 8 Ethernet Port 2 Uplink Ethernet Port 2.0Gbps and adopts high backplane bandwidth design, and has extremely data processing capability to improve smooth data transmission. It provides an easier installation way for PoE devices, such as IP cameras, wireless AP, network telephone transmission, intelligent house and home system, ITS, high-speed way supervisory, security protection system, TV medical treatment, long-distance broadcast television transmission system, etc.

Features:

• Complies with the IEEE802.3af/at standard and automatically detects and identifies PD devices that comply with the IEEE 802.3af/at standard. It can supply to a single port up to 30W.
• 8 Ethernet Port and 2 Uplink Ethernet Port allows to connect with different devices, one button to achieve intelligent run.
• The max transmission distance is 250 meters with 2.0Gbps.
• Plug and play for very simple installation, no configuration required.
• Supports MDI/MDIX auto-flip and auto-negotiation on each port.
• Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
• Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall.
• Strong compatibility, no burning equipment, high-speed transmission, no data loss, flexible expansion.

Specification:

Item: 8+2 POE Switch

Model: ZWD-8+2BZDN-X

POE Port: 1-8 Port Support IEEE 802.3af/at(15.4W/30W) Network Supply

SEP Port: Non Support

PoE Switch Output : 15.4W/30W IEEE802.3af/at

PoE Switch Wire Core: 1/2+, 3/6-

Port Description: 8 Ethernet Port, 2 Uplink Ethernet Port

PoE Switch Connection Standard: IEEE802.3af/IEEE802.3at

PoE Switch Transmission Distance: ≤250m / 820.2ft

PoE Switch Type: End Bridging Method

Network Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

Network Medium: 5 Category and above unshielded twisted pair

Network Signal Distance: Transfer ≤250m / 820.2ft

Gbps: 2.0Gbps

Forwarding Way: Storage Forwarding

Forwarding Rate: 10Base-T:14880PPS/port, 100Base-TX:148800PPS/port

For Address: 2KMAC

Port Function: supply priority mechanism, and forwarding, For automatic learning and aging, IEEE 802.3X full duplex flow control and Backpressure half duplex flow control

Indicator: Each port has one Link/Act and PoE Switch indicator and each equipment has one indicator

Operating Temperature: -20℃～40℃

Storage Temperature: —40℃～70℃

Work Humidity: 10%-90%RH（no condensation）

Storage Humidity: 5%-90%RH（no condensation）

Supply: Adapter（AC100-240V）

Overall Consumption: ≤ 10W

Size: 20 * 11.8 * 4.4cm / 7.9 * 4.6 * 1.7inches

Weight: 664g / 23.4oz

Package Size: 22 * 17.8 * 5cm / 8.7 * 7.0 * 2inches

Package Weight: 873g / 30.8oz

Package Include:

1 * POE Switch

1 * Manual

1 * Adapter
